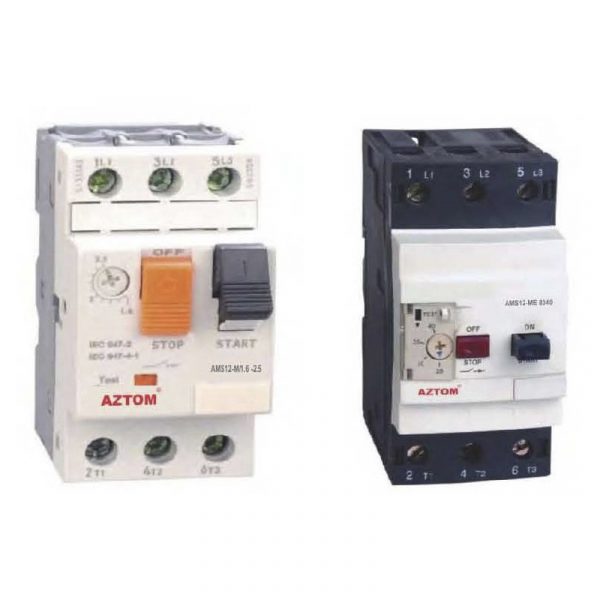

AZTOM AMS12 SERIES MANUAL MOTOR STARTER

AZTOM AMS12 SERIES MANUAL MOTOR STARTER

• TYPE : M32 – M80
• RATED CURRENT OF FRAME : 960A
• M (ME): BUTTON CONTROL SWITCH OR SWITCH CONTROL WITH THERMO MAGNETIC PROTECTION
• DESIGN CODE : 12
• MOLDED CASE CIRCUIT BREAKER ( MANUAL MOTOR STARTER)
• AMBIENT TEMPERATURE. -5 DEG CELSIUS TO + 40 DEG CELSUIS
• RATED FREQUENCY : 50/60 HZ AC
• RATED WORKING CURRENT UP TO : 0.1A – 80A
• RATED INSULATION VOLTAGE 690V
• MOTOR RATED POWER: 230V(0.37-22KW) – 400V(0.37-40KW) – 415V(0.75-45KW) – 440V(0.37-45KW)
• THERMAL TRIPPING SETTING RANGE : 01 UP TO 80A
• MAGNETIC TRIPPING CURRENT: 1.5 UP TO 960A
• THE CURRENT WITH CASE : 0.16 UP TO 24A
• AC – 3 TYPE THREE PHASE MOTOR RATED POWER
• COMPLIES STANDARD IEC60947.4 CERTIFICATE CE AND SO ON
