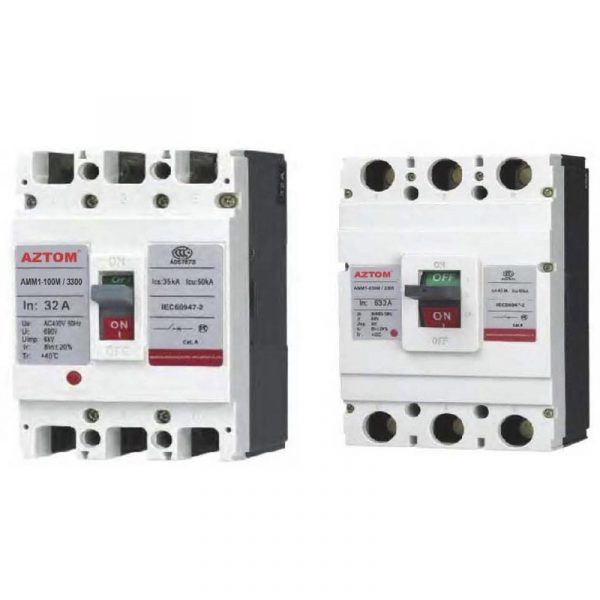

AZTOM AMM1 MOLDED CASE BREAKER

AZTOM AMM1 MOLDED CASE BREAKER

• AMM1 SERIES MOLDED CASE CIRCUIT BREAKER
• RATED CURRENT OF FRAME : 63A UP TO 800A
• DESIGN CODE : 1
• ENTERPRISE CODE : AM
• RATED CURRENT A : (6)10..63..100..160..225..400..630..800A
• RATED WORKING VOLTAGE : 400V
• RATED FREQUENCY 50/60 HZ AC
• RATED INSULATION VOLTAGE : 500 – 690V
• RATED LIMITING SHORT CIRCUIT BREAKING ABILITY KA 400V : 25-35-50-85-100KA
• RATED OPERATING SHORT CIRCUIT BREAKER ABILITY KA 400V : 18-22-35-50-65KA
• BREAKER INSULATING VOLTAGE IS 800V – FOR AMM1-63 IS 500V
• POLES : 3 – 4P
• COMPLIES STANDARD IEC/EN60947.1/2/4/5 and GB/TB14048.1/4/5
