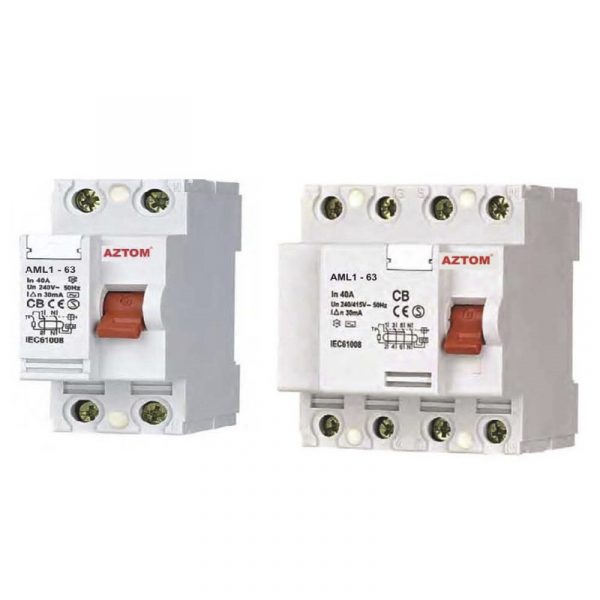

AZTOM AML1-63 RESIDUAL BREAKER

AZTOM AML1-63 RESIDUAL BREAKER

• FRAME CLASS : 63A
• DESIGN CODE : 1
• RESIDUAL CURRENT CIRCUIT BREAKER : L
• ENTERPRISE CODE : AM
• RATED WORKING VOLTAGE : 240V / 415V
• RATED FREQUENCY 50/60 HZ AC
• RATED WORKING CURRENT : 16-20-25-32-40-50-63A
• RATED RESIDUAL OPERATING CURRENT : 0.03-0.1-0.3-0.5A
• RATED RESIDUAL UN-OPERATING CURRENT : 0.015-0.05-0.15-0.25A
• SENSIBILITY : A TYPE – AC TYPE
• MAXIMUM OPERATING TIME : IΔn t≤0.3s – 5IΔn t ≤0.04s
• RATED MAKING AND BREAKING CAPACITY : In ≤50A 500A – In=63A 630A
• LIMITING VALUE OF UN-OPERATING CURRENT : 6In
• RATED LIMITING SHORT-CIRCUIT CURRENT : 3000A
• POLES : 2-4P
• MECHANICAL LIFE : 10000
• ELECTRICAL LIFE : 4000
• STANDARD DIN RAIL
• PROTECTION RESIDUAL CURRENT CIRCUIT BREAKER
• COMPLIES STANDARD GB16916-1 and IEC/EN61008-1
